ReVeal — very long range radar
Early warning long-range radar working in the VHF band uses this technology’s physical properties for the early detection of and guidance to targets, including stealth targets, which are invisible to normal types of radar systems.
Surveillance radar in the VHF band is a tried and tested technology and forms the basis of this system. It even detects “invisible” targets at a very long distance, thus providing enough time to ready the army’s defence units.
It also guarantees increased resistance to enemy attack due to the fact that missiles guided to a target operating in this frequency band would need an antenna larger than the actual missile itself. This mobile system is ready for rapid deployment in all climatic conditions.
Early warning long-range radar working in the VHF band uses this technology’s physical properties for the early detection of and guidance to targets, including stealth targets, which are invisible to normal types of radar systems.
Basic characteristics
- Operating frequency in the VHF band

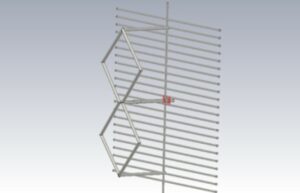

- Innovative BiQuad patch antenna
- Can be equipped with a C2 module used to support
command and control- Portable console enabling remote control
- Long range
- Sophisticated digital signal processing
- Highly resistant to active and passive jamming
- Can target jammers
- High suppression of surface and volume clutters
- Rapid deployment and start-up
- Highly mobile
- Remote control and diagnostics, unmanned operation
- Possible to integrate an IFF interrogator for target identification
- Integrated GNSS
- Built-in Test Equipment (BITE)
- Standard or user-defined output
data format - Optional functions (GNSS orientation, recording devices, C2 module, etc.)
- Low operating and life cycle costs
- Easy maintenance
Technical description
A mobile radar with an automatically deployable high-gain antenna forms the basis of a state’s robust early warning system with a direct connection to the air defence units. The system’s relatively simple technical solution ensures long-term reliability and operational use.
The innovative antenna system allows monopulse signal processing for greater accuracy in the azimuth. A fully coherent frequency agile transmitter, together with a digital receiver and powerful signal processing, guarantee high utility properties both when detecting and tracking remote targets and when effectively suppressing electronic jamming (ECM). The modular design allows its capabilities to be further improved during its life cycle in line with new technical break throughs. The system uses an advanced adaptive detection threshold setting (CFAR), adaptive MTD processing (distinguishing fixed targets) and adaptive clutter mapping to suppress clutter (unwanted signal reflections). The radar is controlled using an intuitive graphical user interface.
